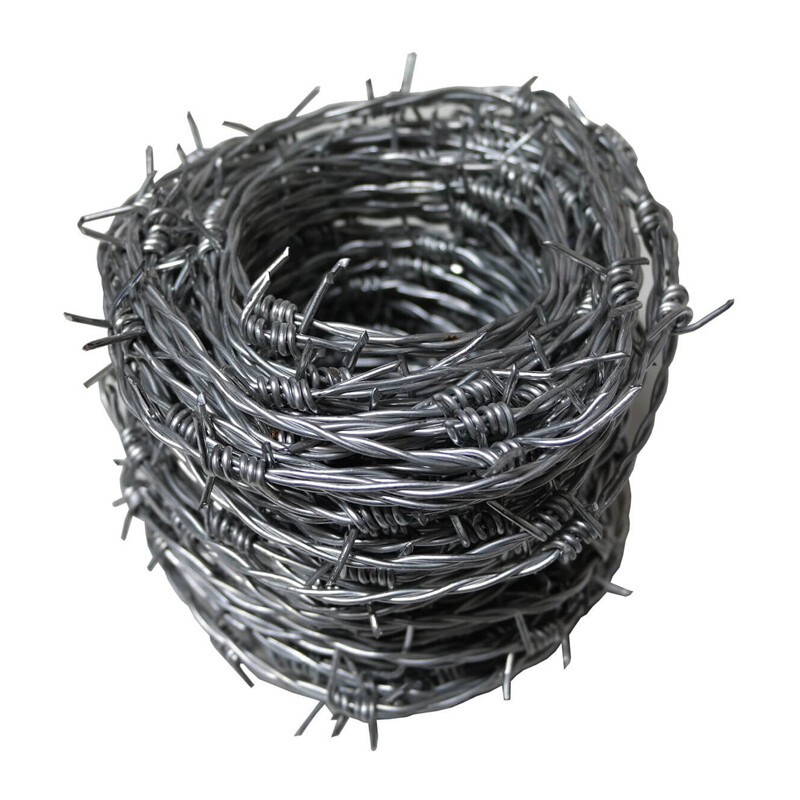

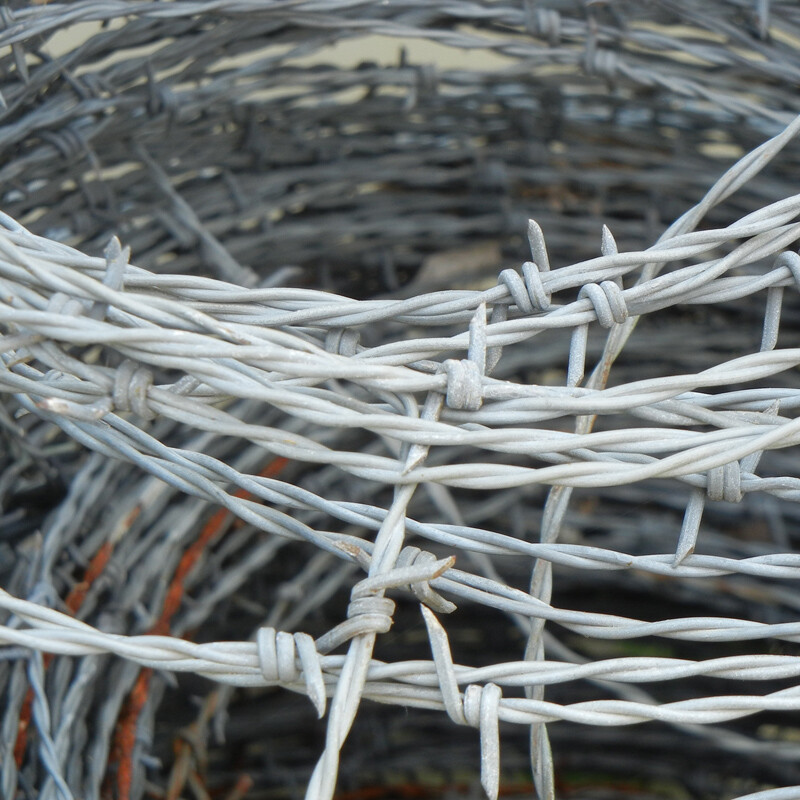

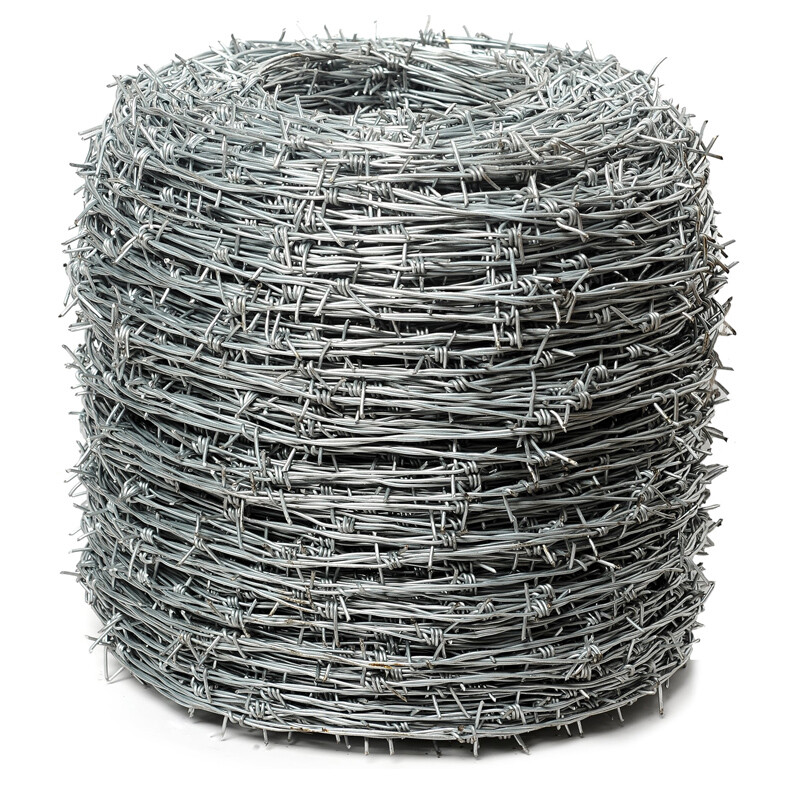

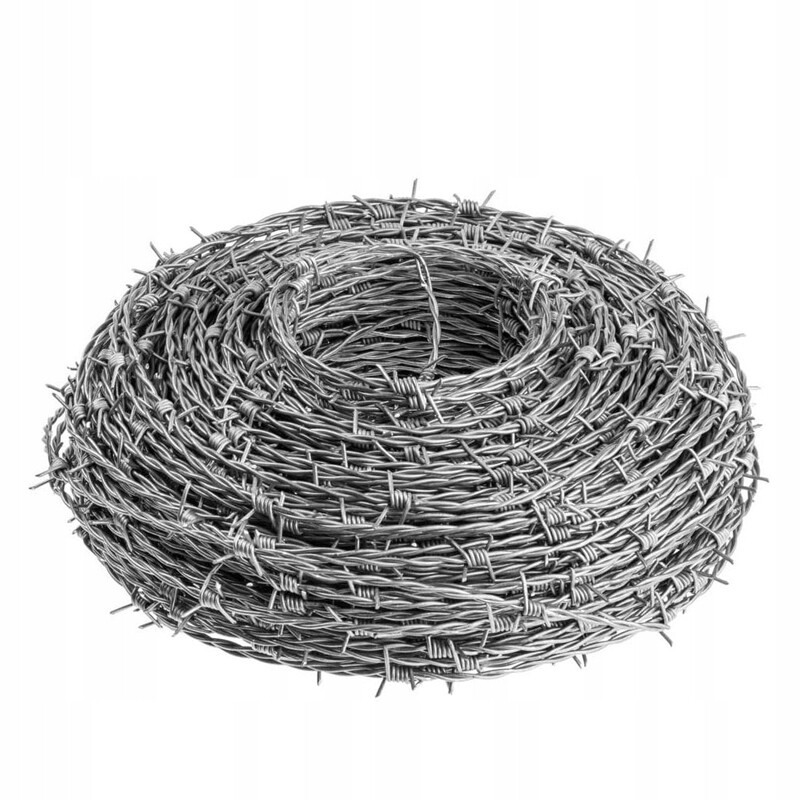

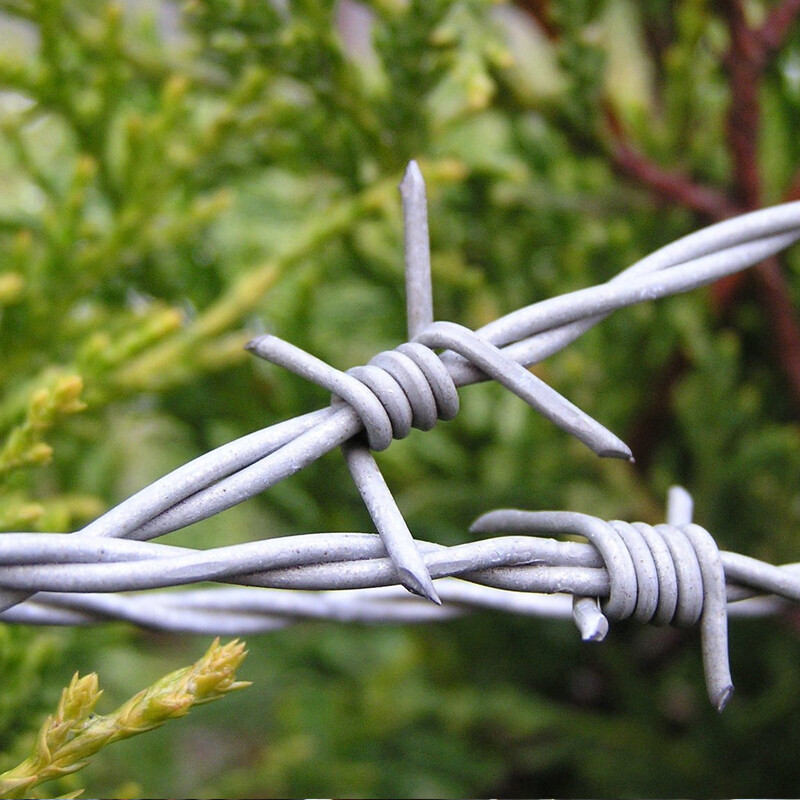

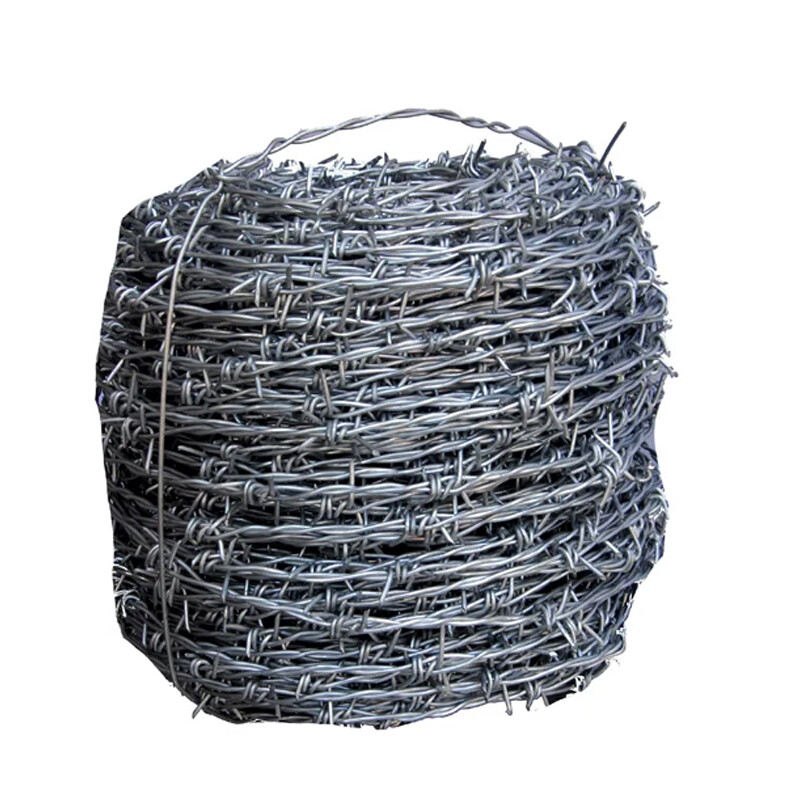

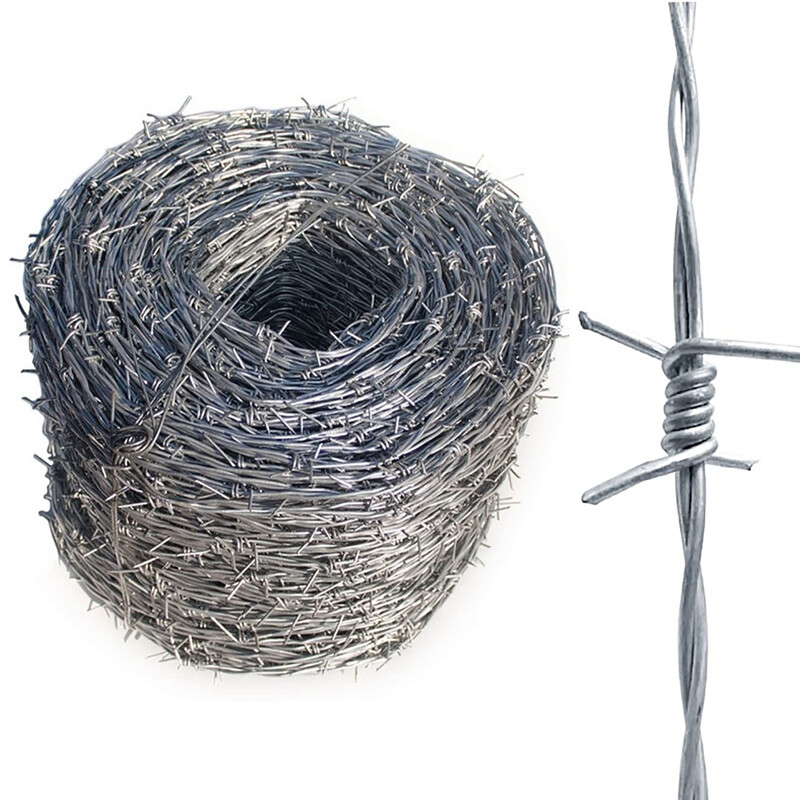

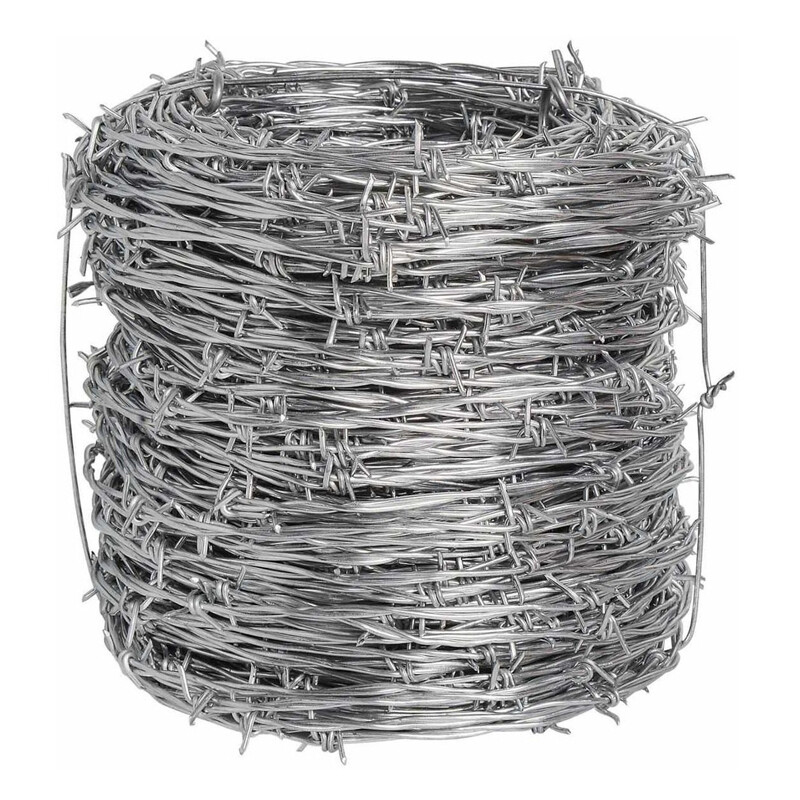

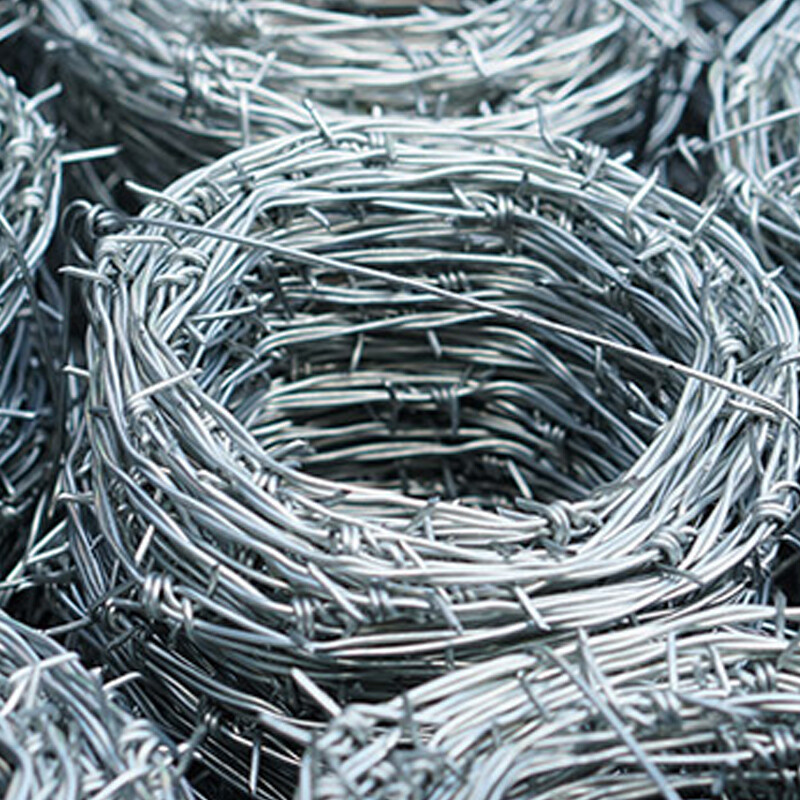

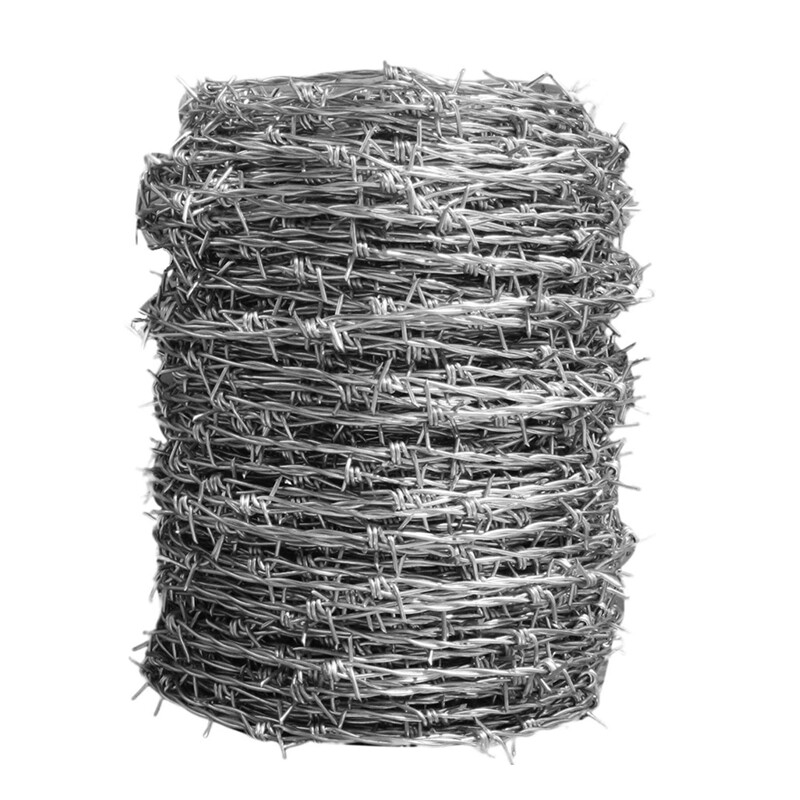

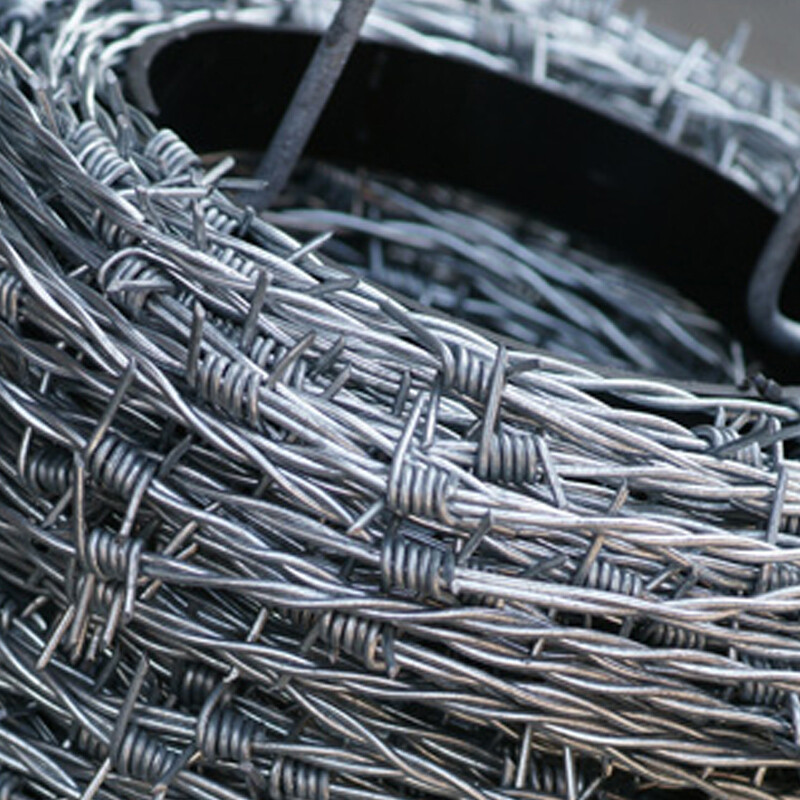

​Barbed Wire
​Barbed wire is twisted and braided by a fully automated barbed wire machine. It is commonly known as thorn barb, barbed wire, and barbed wire.
Features: simple structure, easy installation, beautiful and practical.
Raw materials: high-quality low-carbon steel wire. Surface treatment process: electrogalvanizing, hot-dip galvanizing, plastic coating, and plastic spraying. Available in blue, green, yellow and other colors.

Product Parameters

Barbed wire is twisted and braided by a fully automated barbed wire machine. It is commonly known as thorn barb, barbed wire, and barbed wire.


Features: simple structure, easy installation, beautiful and practical.


Raw materials: high-quality low-carbon steel wire. Surface treatment process: electrogalvanizing, hot-dip galvanizing, plastic coating, and plastic spraying. Available in blue, green, yellow and other colors.

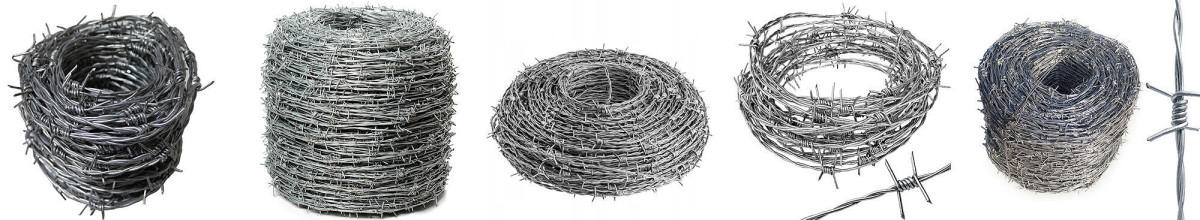

Barbed Wire.jpg


Three twisting methods of barbed wire: forward twisting, reverse twisting, and forward and reverse twisting.

Forward twisting method: twist two or more iron wires into a double-strand iron wire rope and then wrap the barbed wire around the double-strand iron wire.

Reverse twisting method: first wrap the barbed wire around the main wire (that is, a single iron wire) and then add another iron wire to twist and braid it into a double-strand barbed wire.

Forward and reverse twisting method: twist and braid in the opposite direction from where the barbed wire is wrapped around the main iron wire. It is not twisted in one direction.


Packaging: Reel, net weight 25kg or 50kg per reel, wrapped with PVC tape.


Application: Widely used in isolation and protection nets for industry, agriculture, animal husbandry, grassland boundaries, railways, highways, and forest protection, etc.


Specifications of Barbed Wire
Gauge of
Strand and Barb in B.W.G.
Approximate Length per kilogram in Meter
Barbs Spacing 3"Barbs Spacing 4"Barbs Spacing 5"Barbs Spacing 6"
12 x126.06176.75907.27007.6376
12 x147.33357.90518.30158.5741
12-1/2 x 12-1/26.92237.71908.30228.7221
12-1/2 x 148.10968.8149.22429.5620
13 x137.98088.8999.572110.0553
13 x148.84489.689910.292310.7146
13-1/2 x149.607910.613411.470511.8553
14 x1410.456911.659012.542313.1752
14-1/2 x14-1/211.987513.367114.378115.1034
15 x1513.892715.494216.666617.5070
15-1/2 x15-1/215.349117.114418.406019.3386
Barbed Wire Specification
TypeWire Gauge (SWG)Barb Distance (cm)Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire10# x 12#7.5-151.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire; PE barbed wirebefore coatingafter coating7.5-151.5-3
1.0mm-3.5mm1.4mm-4.0mm
BWG11#-20#BWG8#-17#
SWG11#-20#SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.




Factory Display

  • 645f88ceb28016b71deb44d0eca6ae91346ff4f633046-YV9trp.jpg
  • 4ba06389467ca90624596b987abe434be8635cba188343-TdLEpR 拷贝.jpg
  • 8.jpg
  • 1.jpg
  • 12.jpg
  • 工厂 (2).png
  • 工厂 (2).jpeg
  • 工厂车间 (1).jpeg
  • 工厂车间 (12).jpeg

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional manufacturer with 20 years' experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.

Q: Will you delivery the goods on time?

A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.

Q: Do you provide samples ? Is it free or extra ?

A: The samples are free,you just need to pay the courier freight.

Q: How could you guarantee your products?

A: Products are manufactured by certified workshops, inspected by professional inspector.

Q: Do you accept the third party inspection?

A: Yes, absolutely we accept.

Q: How do we trust your company?

A: We specialist in steel business for many years, authenticated by SGS,welcome to visit our factory.

Q: What's your advantages?

A: Our own production lines make the good prices and high quality possible and seasoned workers serve you 7*24 hours.

Q: Can you produce the products according to my own drawings?

A:Yes,we can produce the products according to your drawings that will be most satisfy you.

Q: What is your Payment?

A: 100% T/T advance , Western Union (For Small Order)
B: 30% T/T and balance 70% before the shipment
C: 100% Irrevocable LC at sight (For Big Order)

Q: How long is the Delivery time?

A: 7~20 working days after confirming the payment.
If the order is urgently, we will push our workshop finish in advance.
